Nebra

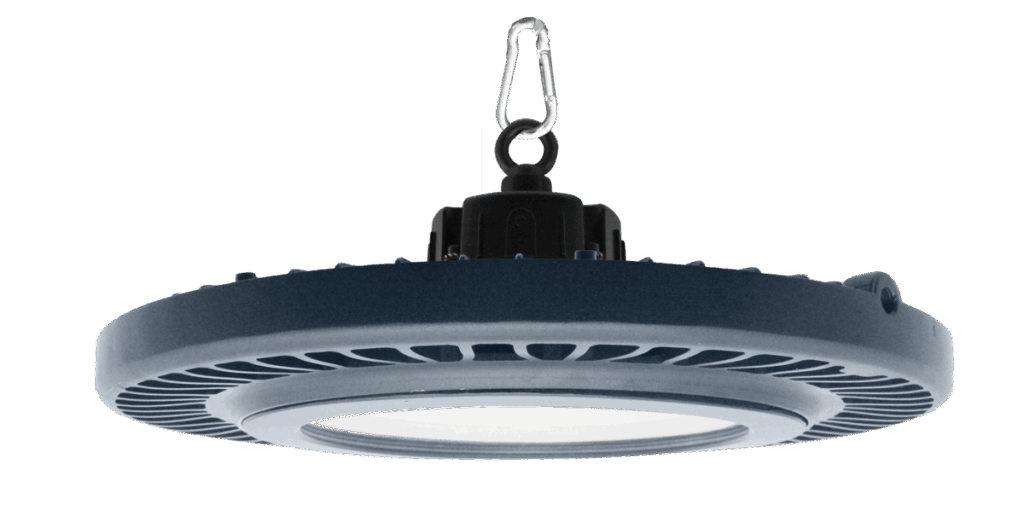

NEBRA G3 XB 120-965 ETDD

ref: 10336787

5 years warranty

-22 – +122 °F

Robust high bay lighting solution for animal husbandry

Characteristics

  • High color rendering for milk quality evaluation.
  • Spectrum optimized for animal eye sensitivity and biological effects.
  • Night and twilight sequences possible.
  • Controllability enables integration of intelligent lighting management systems.

Applications

  • –
  • Sheds
  • Farm

Technical information

  • IP 65
  • IK 10
  • Frequency: 0-50/60 Hz
  • Rated Voltage: 100-240V
  • NON-SELV
  • Protective Ground

Mounting type: Outdoor / Indoor / Suspended

Housing

Copper-free casting aluminium alloy with surface protected against impacts and corrosive environments

Diffuser

Hardened glass

Cable entry

1 cable gland M20 + 1 stopping plug M20

Luminous flux

12,000 lm

Power consumption

80 W

Efficiency

150 lm/W

Lifetime (L70/B50 77ºF)

50,000 h

Light colour

6,500 K

CRI

> 90

Color consistency

02

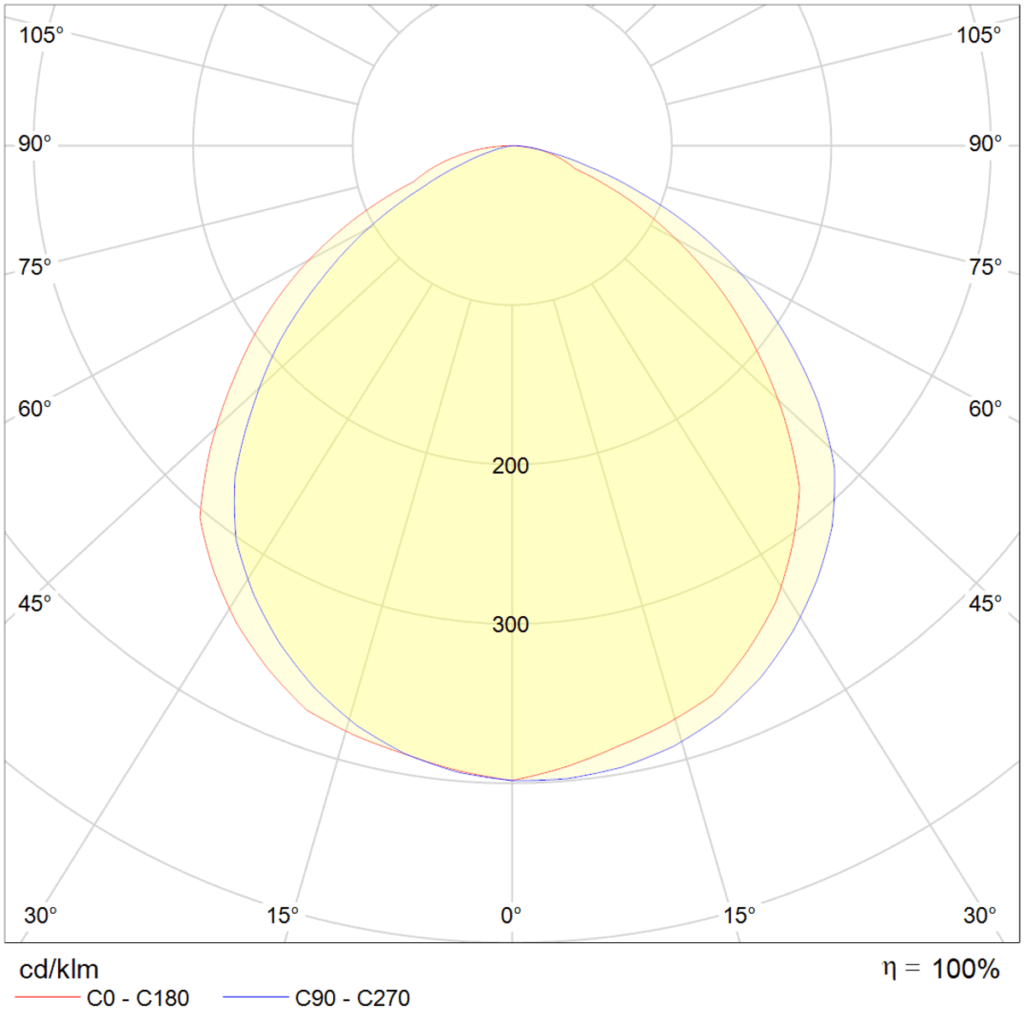

Spectra

Optics

Wide (W)

Driver

Electr trnsfmr DALI DIM(ETDD)

Connection

Connection cable

Power factor

0.95

THD

14 %

Flammability

V2

Glow wire test

1562 °F

Ambient temperature

-4 – +77 °F

Luminaire class

I

Height

6.93 in

Net weight

9.48 lbs

Diameter

14.17 in

Downloads

Datasheet
