Altuma

ALTUMA 0.7 MXB 28-CCL ETDD 1CH R

ref: 10228121

5 years warranty

-13 – +95 °F

Robust luminaire with micro-dim function

Characteristics

  • Dimming range from 0.1-100% .
  • Flicker-free dimming creates a calming atmosphere in the stable.
  • Single installation row in broiler barns thanks to optical system.
  • Tested ammonia resistance.
  • Dynamic spectrum with white and red channel.

Applications

  • Sheds
  • Farm
  • Poultry

Technical information

  • IP69 (80°)
  • IK 10
  • Frequency: 0-50/60 Hz
  • Rated Voltage: 100-240V
  • NON-SELV
  • Protective Ground

Mounting type: Indoor / Outdoor / Suspended / Ceiling mounting

Profile

Clear PMMA

End caps

Acrylonitrile styrene acrylate (ASA)

Gasket

Polyurethane

Cable entry

Cable gland

Fixing clips

Stainless steel

Luminous flux

2,800 lm

Power consumption

22 W

Efficiency

127 lm/W

Color consistency

01

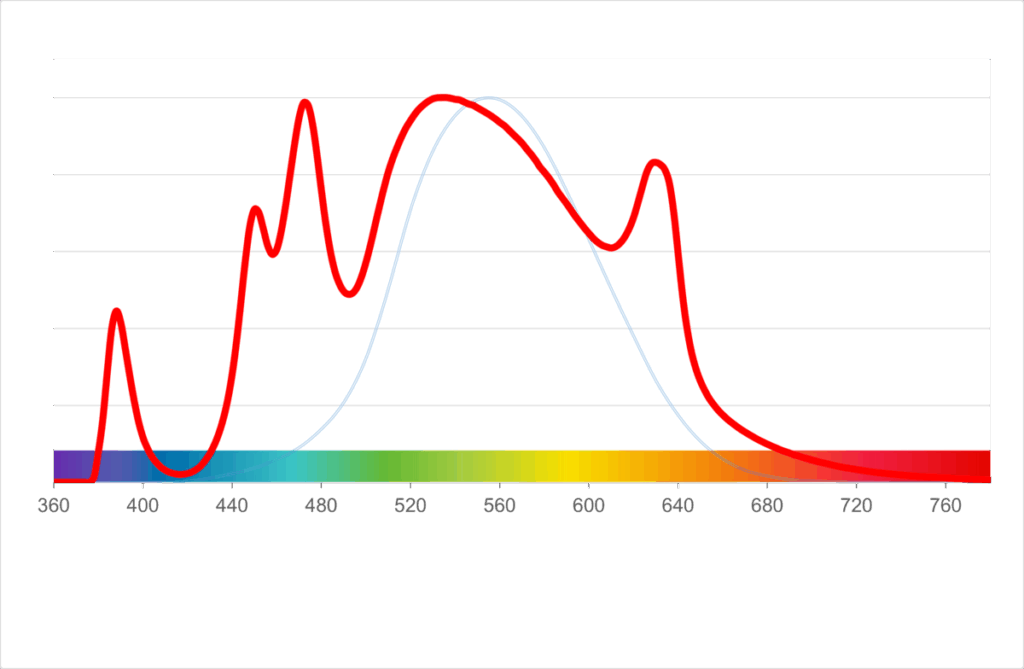

Spectra

Optics

Extreme wide (XW)

Polar diagram

–

Driver

Electr trnsfmr DALI DIM(ETDD)

Connection

Connection cable

Power factor

0.95

THD

14 %

Flammability

HB

Glow wire test

1202 °F

Ambient temperature

-13 – +95 °F

Luminaire class

I

Length

30.98 in

Distance between springs

27.56 in

Width

4.45 in

Height

4.96 in

Net weight

6.83 lbs

Diameter

3.94 in

Downloads

Datasheet
